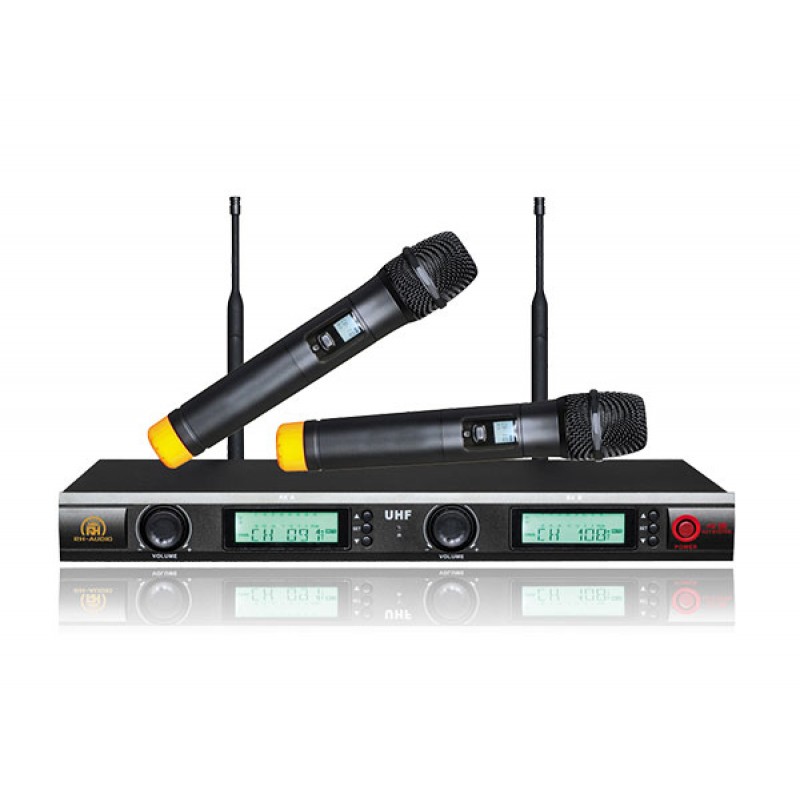

- Dòng sản phẩm: RH360U
- Số lượng sản phẩm trong kho: Vẫn còn hàng
Xu hướng tìm kiếm: Micro không dây cầm tay - 2 kênh
Functional Description:
※ Using UHF740-840MHz band to avert interferencing frequency.
※ All using quartz crystal oscillating circuits so the frequency is very steady.
※ Special design companding circuit, strongly improve S/N ratio.
※ Multilevel quiet control circuit,to avoid interference signal from outside open
the mute system.
※ Using excellent dynamic cardioid direct cartridge, the timbre bright and clear.
※ All ready output and input socket,it will be more convenience to connect every equipment.
Specifications:
OVERALL |
RECEIVER |
WIRELESS MICROPHONE |
Carrier frequency range:UHF740-840MHz |
Power requirement: DC15-18V |
Rf power:+12dBm |
Stability:〈±20ppm |
Power:4WATER |
Brewage:FM |
Dynamic range:〉95dB |
Image rejection: 85dB |
Frequency deviation:±40KHZ |
T.H.D:〈 0.5% |
Sensitivity:5dBu(SINAD=20dB) |
Power:Handheld 1.5V X 2 |
Freqency response:50HZ~18KHZ ±3dB |
||
Audio out:Balanced:0~700mV Mix:0~300mV |
